Drag and Drop Area

A drag and drop area wraps views which the user can drag, or onto which the user can drop other areas. Give every area an ID. A drop target lists the IDs it accepts with Droppable; when one of them is dropped, its ID is written into the state bound with InputValue. Moving the dropped view is up to you: change your model in an Observe of that state and render again.

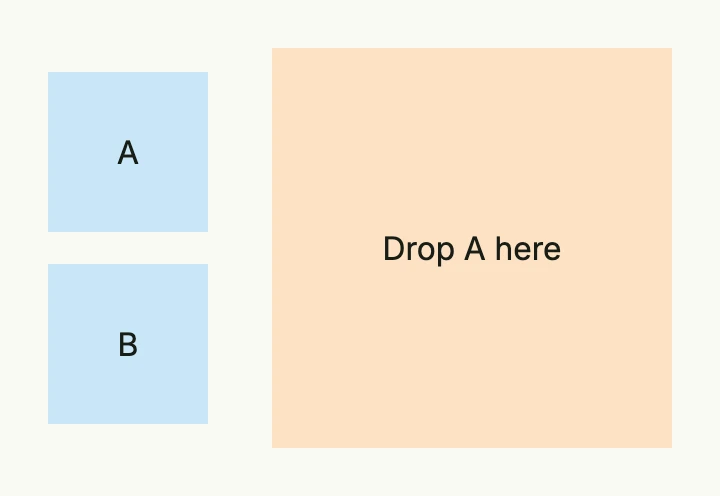

Drag and Drop Area

dropped := core.AutoState[string](wnd).Observe(func(id string) {
	// the area with this id was dropped onto the zone
})

item := func(id, label string) core.View {
	return DnDArea(
		VStack(Text(label)).BackgroundColor("#C9E7F8").Frame(Frame{}.Size(L80, L80)),
	).ID(id).CanDrag(true)
}

return HStack(
	VStack(item("a", "A"), item("b", "B")).Gap(L16),
	DnDArea(
		VStack(Text("Drop A here")).BackgroundColor("#FDE2C4").Frame(Frame{}.Size(L200, L200)),
	).ID("zone").
		CanDrop(true).
		Droppable("a").
		InputValue(dropped),
).Gap(L32)

Constructors

ConstructorDescription
func DnDArea(children ...core.View) TDnDAreaCreates an area which contains the given views.

Methods

MethodDescription
CanDrag(canDrag bool) TDnDAreaAllows the user to drag the area.
CanDrop(canDrop bool) TDnDAreaAllows the user to drop other areas onto this area.
Droppable(ids ...string) TDnDAreaSets the IDs of the areas which may be dropped onto this area.
Frame(frame Frame) TDnDAreaSets the frame of the area.
ID(id string) TDnDAreaSets the ID which identifies the area when it is dropped.
InputValue(state *core.State[string]) TDnDAreaBinds a state which receives the ID of the area dropped onto this area.
