Length

Length

A Length is a size used by frames, paddings, gaps, borders and fonts. It is a string with a CSS-like unit. Prefer the predefined constants L0 to L1600: they are in rem and scale with the user’s font size, e.g. L16 is 1rem, about 16dp at the default font size. The empty string means automatic.

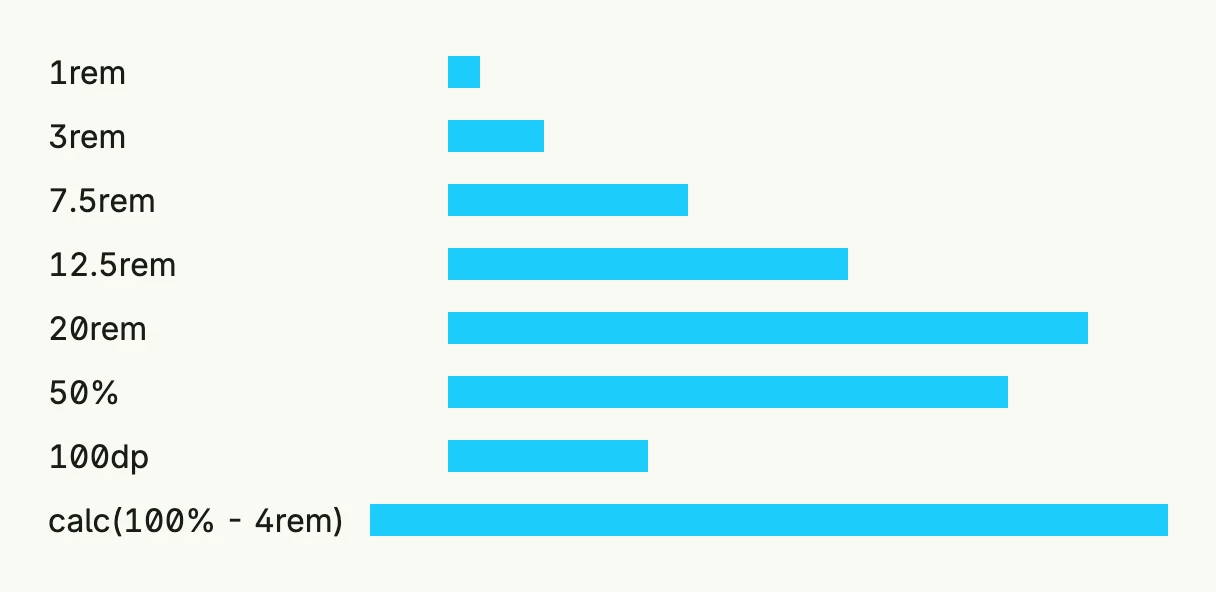

Length

lengths := []Length{L16, L48, L120, L200, L320, Relative(0.5), Absolute(100), "calc(100% - 4rem)"}

return VStack(
	ForEach(lengths, func(l Length) core.View {
		return HStack(
			Text(string(l)).Frame(Frame{Width: L200}),
			VStack().BackgroundColor("#1CCDFB").Frame(Frame{Width: l, Height: L16}),
		).Alignment(Leading).Frame(Frame{Width: L560})
	})...,
).Alignment(Leading).Gap(L8)

Supported values are absolute units in dp (42dp), rem (0.75rem), percent (42%), 100dvh (the constant ViewportHeight) and calc expressions with these units. L1 is a hairline of 1px. Other values are passed to the browser unchecked and their behavior is undefined.

Constructors

FunctionDescription
L(dip float64) LengthConverts a size in dp at the default font size into rem, e.g. L(24) is 1.50rem.
Absolute(v core.DP) LengthCreates a fixed size in dp, which does not scale with the font size.
Relative(v core.Weight) LengthCreates a size relative to the parent, e.g. Relative(0.5) is 50%; the constant Full is 100%.

Relative sizes only take effect if the parent has a size of its own.

Methods

MethodDescription
Estimate() core.DPEstimates the size in dp; this is only an estimation.
Mul(s float64) LengthMultiplies the number of the length by s, keeping its unit.
Negate() LengthReturns the negative length.
