Transformation

A Transformation moves, scales or rotates a stack after layout, without affecting the position of its neighbors. Combined with the AnimateTransition animation, changes of the transformation are animated.

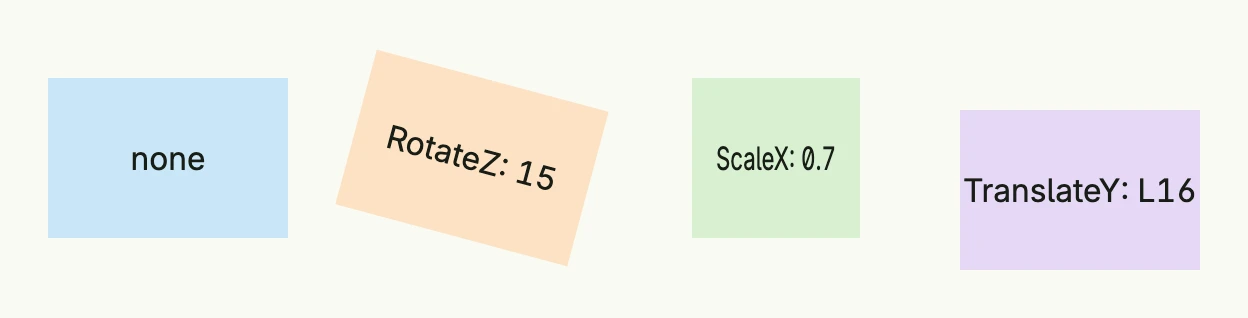

Transformation

return HStack(
	VStack(Text("none")).
		BackgroundColor("#C9E7F8").
		Frame(Frame{}.Size(L120, L80)),
	VStack(Text("RotateZ: 15")).
		Transformation(Transformation{RotateZ: 15}).
		BackgroundColor("#FDE2C4").
		Frame(Frame{}.Size(L120, L80)),
	VStack(Text("ScaleX: 0.7")).
		Transformation(Transformation{ScaleX: 0.7, ScaleY: 1}).
		BackgroundColor("#D8F0D2").
		Frame(Frame{}.Size(L120, L80)),
	VStack(Text("TranslateY: L16")).
		Transformation(Transformation{TranslateY: L16}).
		BackgroundColor("#E5D8F6").
		Frame(Frame{}.Size(L120, L80)),
).Gap(L32).Padding(Padding{}.All(L16))

Fields

FieldDescription
TranslateX, TranslateY, TranslateZ LengthMoves the component.
ScaleX, ScaleY, ScaleZ float64Scales the component; 1 is the original size.
RotateZ float64Rotates the component clockwise, in degrees.

Transformation has no methods.
